Spillway Update

On the 7/11/2021, a couple hundred bareroot slips were used on a large dam spillway as a stop-gap measure to prevent stepping back of an erosion problem.

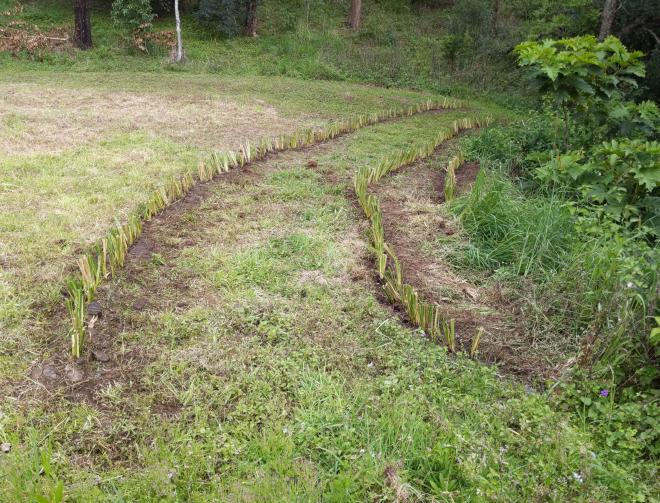

New Vetiver hedge on a spillway

New Vetiver hedge on a spillway

The dam for reference.

Aerial photo of dam size with measuring tool present

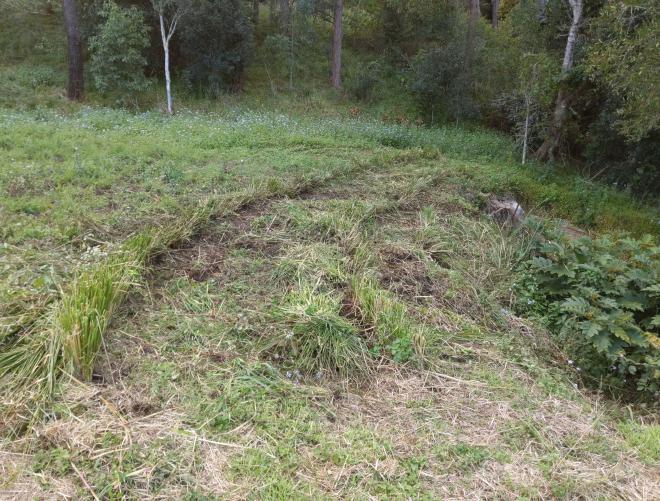

A photo of the February flood flow with long pasture grass visibly flattened over young hedge.

New Vetiver hedge on a spillway flattened by water flow

Come 7/07/22, unfortunately, a lack of promised maintenance of pasture grass directly beside the young Vetiver planting caused shading and then after a record wet season, the longer grass was pushed over the Vetiver, covering them and then catching silt and other debris. Maintenance of surrounding weeds is critical to allow the Vetiver to grow in the initial stages.

New Vetiver hedge on a spillway flattened by water flow

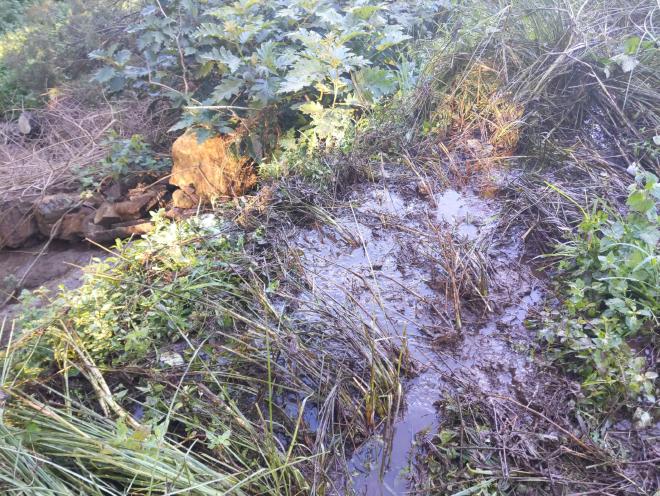

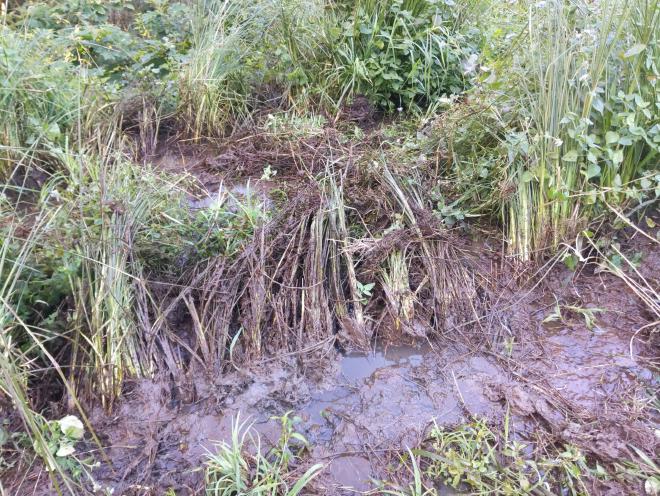

Once the problem was discovered, the long vegetation and mud was removed from the young Vetiver to expose it to the sun. One or two Vetiver slips were possibly killed by this swamping event. Plants that were swamped are noticeably smaller than ones that weren’t, causing the hedge to not be homogenous in size.

New Vetiver hedge covered with mud

New Vetiver hedge covered with mud

On 26/08/22 as the weather began to warm, I returned to check the progress of the hedge and trim it in preparation for the growing season. This involved some tweaking of mud and debris as the spillway was still actively flowing. The surrounding pasture was cut with a brushcutter and some handweeding of herbs and other grasses where appropriate.

Vetiver hedge in process of being pruned

Vetiver hedge after pruning

On 31/10/22, I stopped in to check growth. After the record flooding and nutrient inflows into dam, an Azolla Water Fern flush had occurred and then subsequently been washed out after another downpour over the wet catchment. This has caught, in places, over 22cm in depth of a mulch layer of mostly Azolla and other aquatic plants.

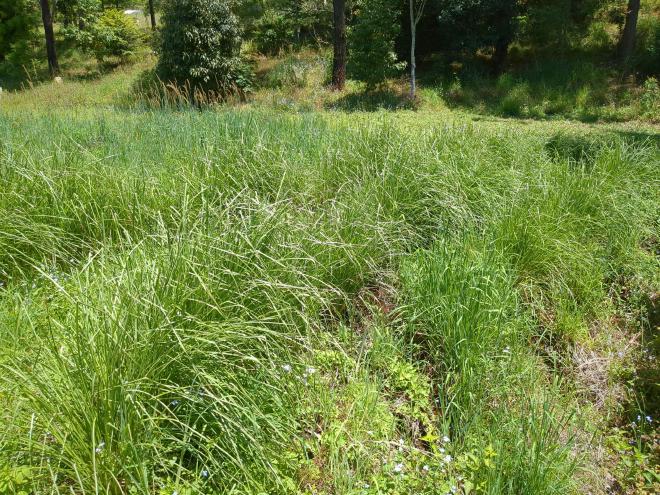

Regrown hedge showing lots of new growth

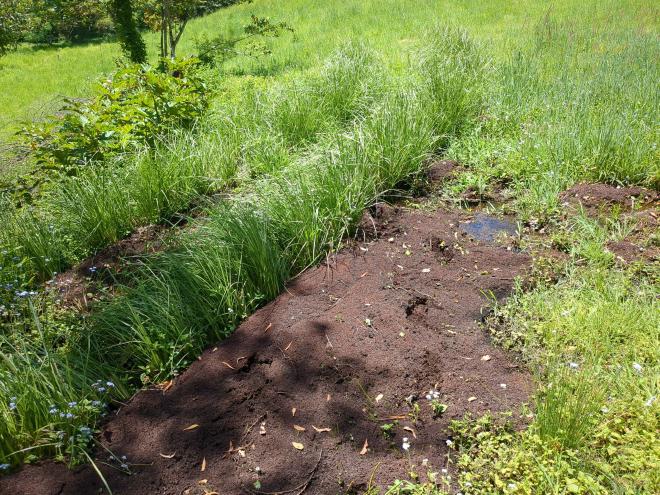

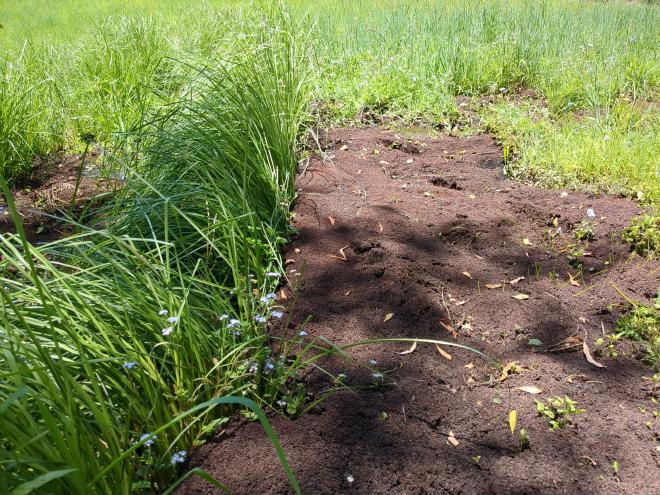

Vetiver hedge with water fern backed up behind it

Vetiver hedge with water fern backed up behind it

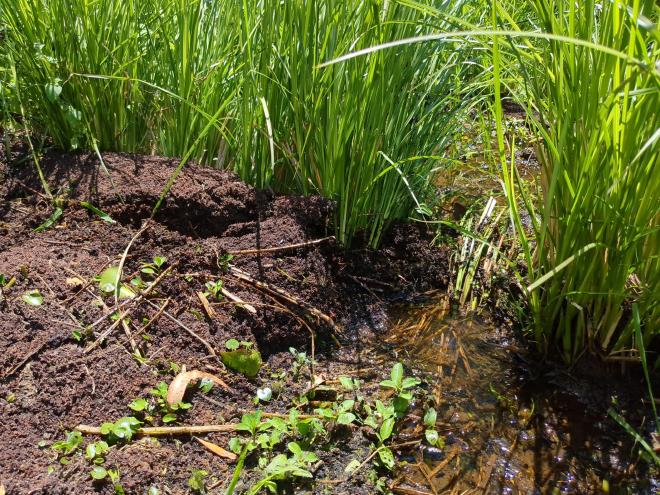

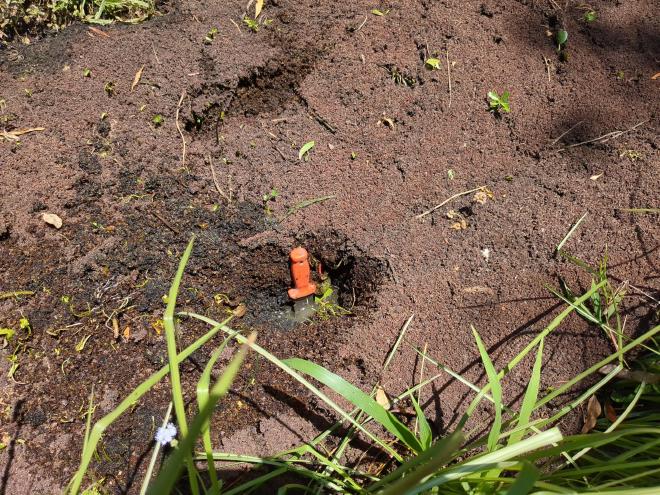

Vetiver hedge with water fern backed up behind it with soil knife showing depth

As the flow of water has been non-stop since November of last year, there are still areas struggling to stand up and a couple of gaps will probably not close due to the initial lack of maintenance.

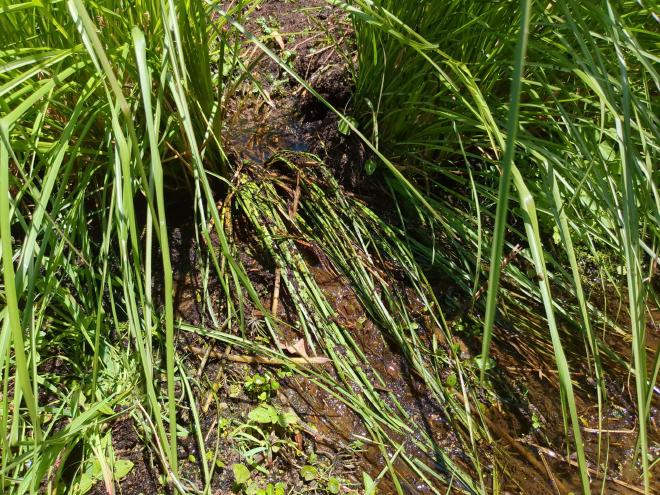

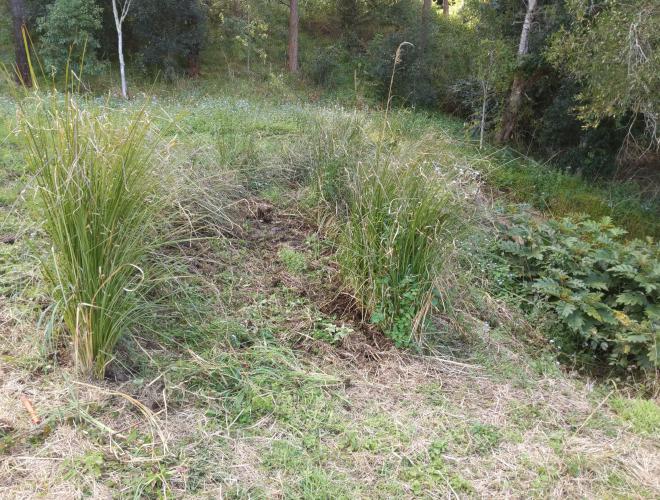

Gaps present in hedge

Gaps present in hedge

All in all, for a one year old, poorly maintained hedge to resist record floodings from a massive dam catchment and still catch significant amounts of debris is a clear example of the versatitily of Vetiver hedges for silt and erosion control. No other native or exotic plant could do what has been done here.
